Knuckle Boom Cranes / KDR 195 / L7+L5

Technical Features

Lifting moment 195 Ton/m
Lifting capacity 3m Radüste 65 Ton

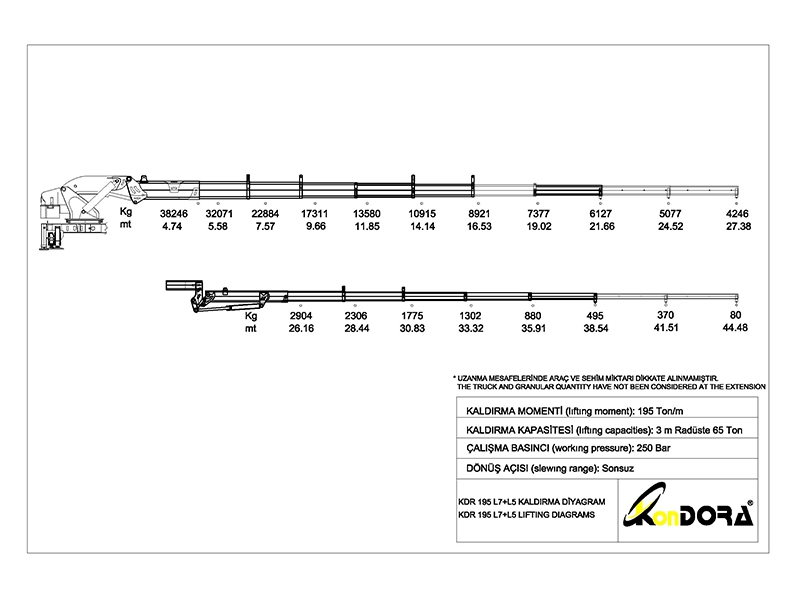

Maxımum hydraulic horızontal outreach with knuckle booms 6127kg / 21,66m
Maxımum mechanıcal horızontal outreach with knuckle booms 4246kg / 27,38m
Maxımum hydraulic horızontal outreach with 2. knuckle booms 495kg / 38,54m
Maxımum mechanıcal horızontal outreach with 2. knuckle booms 80kg / 44,48m
Number of hydraulic extensions with knuckle booms 7
Number of mechanıcal extensions with knuckle booms 2
Number of hydraulic extensions with 2.knuckle booms 5
Number of mechanıcal extensions with 2.knuckle booms 2
Counter weight 7250kg
Oıl tank capacity 650
Gear dıameter 1747mm
Winch capacity 27000
The amount of vehicle and the amount of deflection are not taken into consideration at the reaching distances
