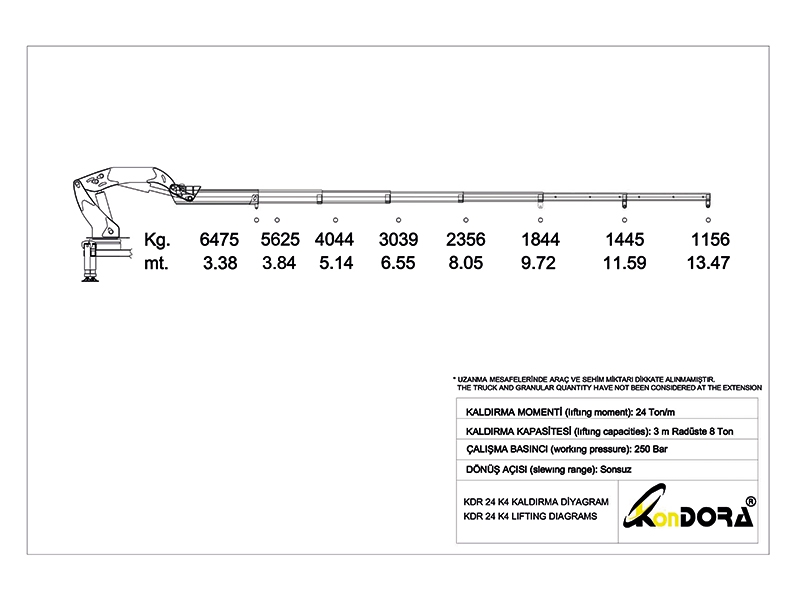

Knuckle Boom Cranes / KDR 24 / K4

Technical Features

Lifting moment 24 Ton-m
Lifting capacity 3m Radüste 8 Ton
Maxımum hydraulic horızontal outreach with knuckle booms 1844kg / 9,72m
Maxımum mechanıcal horızontal outreach with knuckle booms 1156kg / 13,47m
Maxımum hydraulic horızontal outreach with 2. knuckle booms No
Maxımum mechanıcal horızontal outreach with 2. knuckle booms No
Number of hydraulic extensions with knuckle booms 4
Number of mechanıcal extensions with knuckle booms 2
Number of hydraulic extensions with 2.knuckle booms No
Number of mechanıcal extensions with 2.knuckle booms No
Counter weight No
Oıl tank capacity 125
Gear dıameter 700mm
Winch capacity 4800
The amount of vehicle and the amount of deflection are not taken into consideration at the reaching distances
